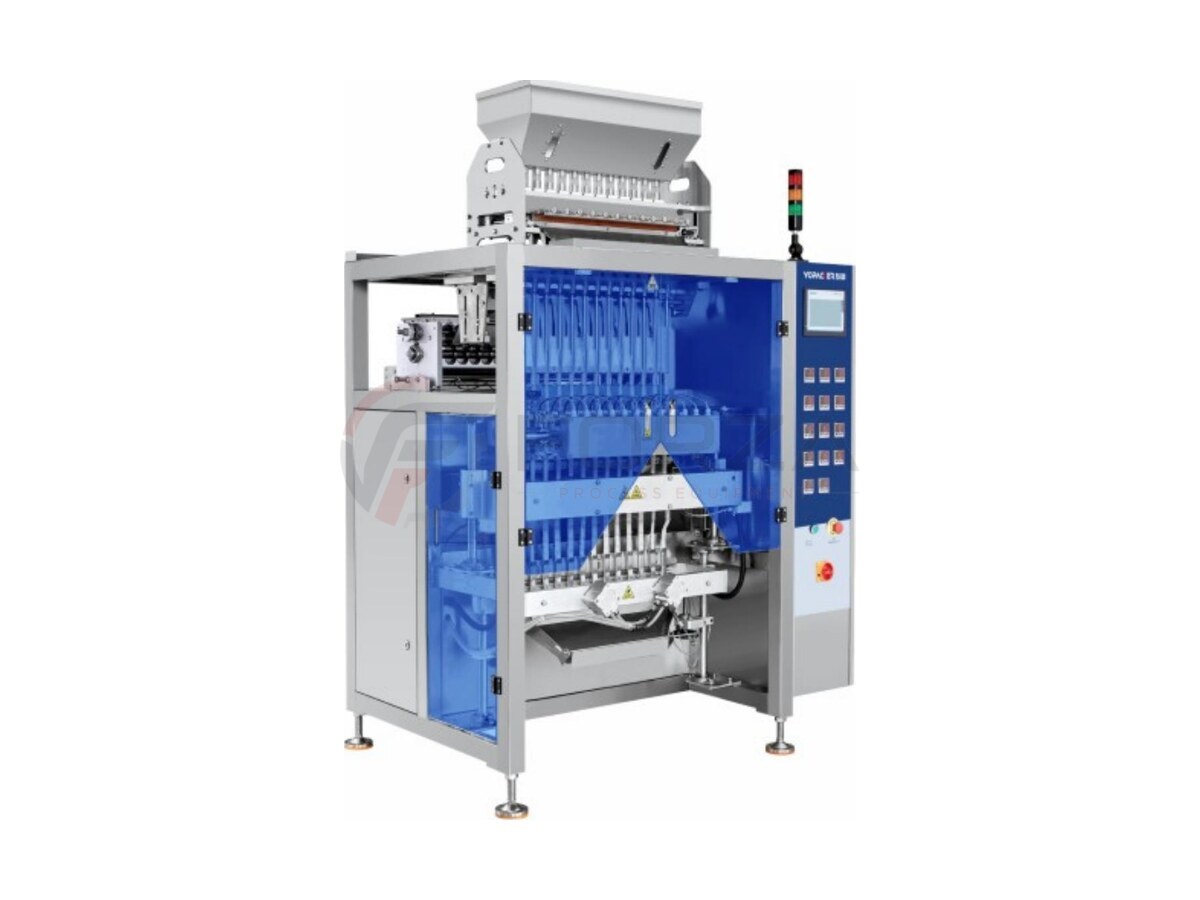

Multi-Lane Stick-Pack Machine (Granule)
Multi-lane stick-pack packing for free-flowing granules.
A multi-lane vertical form-fill-seal machine that produces stick packs for free-flowing granular products — instant coffee, solid drinks, fruit-enzyme powders, sugar and granules. Volumetric cup metering doses each lane, then every lane forms, meters, fills, seals, cuts and batch-codes round-corner stick packs at the same time, in 6, 8 or 10 lanes.
- 6, 8 or 10 lanes of simultaneous stick packs
- Volumetric cup metering for free-flowing granules, 1–20 g per stick
- Servo heat-sealing for seamless, sticker-free round-corner sticks
- Mitsubishi PLC + touch screen, Airtac cylinders, Schneider power
- SUS304 stainless product-contact parts, GMP-compliant
Technical parameters
| Format | Stick pack (round-corner stick sachet) |
|---|---|
| Lanes | 6 (YF-520K) · 6 / 8 / 10 (YF-720K) |
| Filling range | 1–20 g per stick |
| Stick size | W 25–38 mm (520K) / 25–55 mm (720K), L 30–170 mm |
| Metering | Volumetric cups |
| Output (packs/min) | 120–200 (520K) · 200–350 (720K) |
| Max film width | 520 / 720 mm |
| Voltage / power | 220V 50–60Hz / 11 kW |
| Air consumption | 0.6 m³/min @ 0.6–0.8 MPa |
| Dimensions (L×W×H) | 1410 / 1540 × 1700 × 2500 mm |
| Weight | 600 / 650 kg |
Specifications are representative — most machines are configured to your production requirements. Ask for a tailored spec →
Buyer questions
Multi-Lane Stick-Pack Machine (Granule): common questions
What is the Multi-Lane Stick-Pack Machine (Granule) (YF-520K / 720K) used for?
A multi-lane vertical form-fill-seal machine that produces stick packs for free-flowing granular products — instant coffee, solid drinks, fruit-enzyme powders, sugar and granules. Volumetric cup metering doses each lane, then every lane forms, meters, fills, seals, cuts and batch-codes round-corner stick packs at the same time, in 6, 8 or 10 lanes.
What output does the YF-520K / 720K deliver?
The YF-520K / 720K runs at 120–200 (520K) · 200–350 (720K). Actual output depends on your product and format, so we size each machine to your line.
What power supply does the Multi-Lane Stick-Pack Machine (Granule) need?
It is supplied for 220V 50–60Hz / 11 kW, 220V 50–60Hz / 11 kW. We can build to your site's electrical supply on request.
Can the Multi-Lane Stick-Pack Machine (Granule) be built and certified to CE or UKCA standards?
Yes. We can supply it CE-marked for the EU/EEA and UKCA-marked — or CE-marked, currently accepted in Great Britain — for the UK, with a Declaration of Conformity, technical file and a risk assessment to EN ISO 12100.
Is the Multi-Lane Stick-Pack Machine (Granule) suitable for GMP or hygienic production?
Yes. It is built in stainless steel (SS304/SS316) with hygienic, easy-clean, corrosion-resistant construction to GMP standards, with validation support (IQ/OQ/PQ) available where required.
Can the Multi-Lane Stick-Pack Machine (Granule) be customised or integrated into a full line?
Yes. Capacity, format, materials and controls can be configured, and it can be combined with upstream and downstream machines into a complete packaging machinery line.
What spare parts and servicing are available for the YF-520K / 720K?
Because it is built on mainstream tier-1 components, spare parts are readily available. We supply recommended spares packages and provide ongoing service, maintenance and technical support.
What safety features does the Multi-Lane Stick-Pack Machine (Granule) have?
Safety is documented to EN ISO 12100 with guarding, emergency stop and electrical safety to EN 60204-1, plus overload protection where applicable — all recorded in the technical file.
What is the footprint of the YF-520K / 720K?
Overall dimensions are approximately 1410 / 1540 × 1700 × 2500 mm, weighing 600 / 650 kg. We confirm general-arrangement drawings for your layout before manufacture.
What is the lead time for the YF-520K / 720K?
Typical lead time is around 16 weeks from order confirmation. Where the YF-520K / 720K is available from our UK warehouse stock, it can be dispatched for immediate delivery. Your exact lead time is confirmed on the quotation.
What after-sales support comes with the YF-520K / 720K?
We provide delivery, installation, commissioning, operator training, spare parts and warranty support across the UK and Europe.
More on certification, lead times and support in our knowledge base →
